RoTechBooster LNG300
Charts

For a larger view, please mouseover the image.

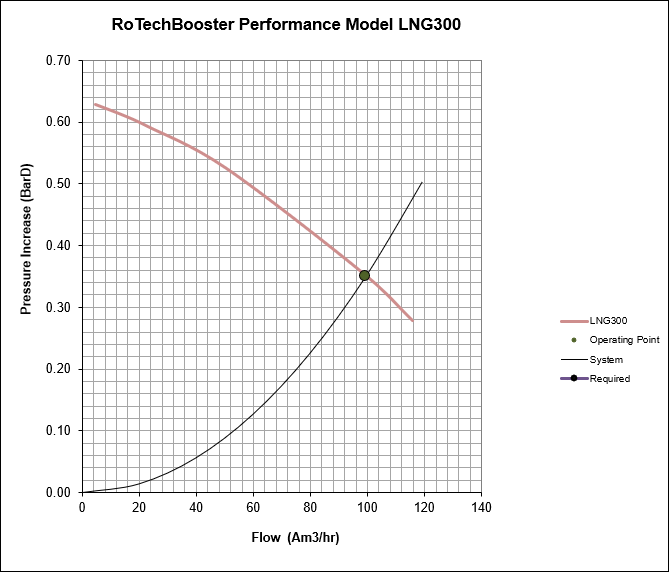

Performance diagram RoTechBooster LNG300

Example start conditions
Suction conditions:
Propane at 2.07 BarG 21°C (30 PSIG, 70°F)
Gas density at inlet pressure and temperature: 5.892 kg/m3
Required flow: 99.31 Am3/hr
Operation pressure: 0.35 BarD (5 PSID) @ 99.31 Am3/hr with Propan

For a larger view, please mouseover the image.

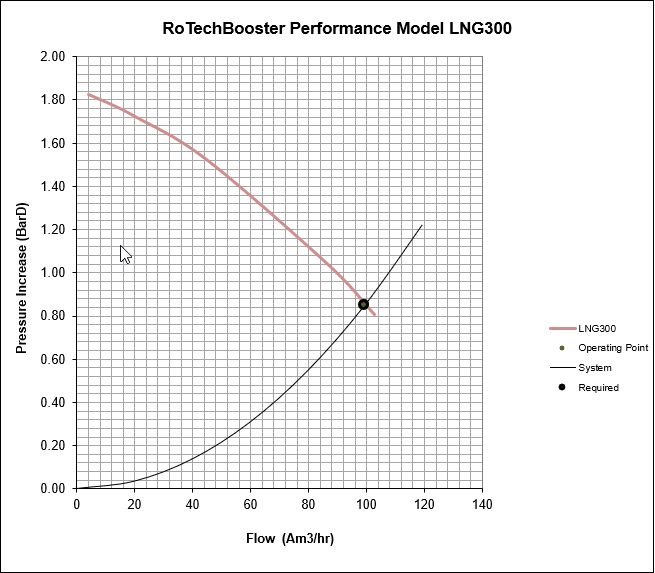

Performance diagram RoTechBooster LNG300

Example Settle-out conditions
Suction conditions:
Propane at 8.6 BarG 21°C (124.7 PSIG, 70°F)
Gas density at inlet pressure and temperature: 3.969 kg/m3
Required flow: 99,3 Am3/hr
Operation pressure: 0.6 BarD (9.7 PSID) @ 99.31 Am3/hr with propane
