BuraGlas 9480

BuraGlas 9480

BuraGlas 9480

Features

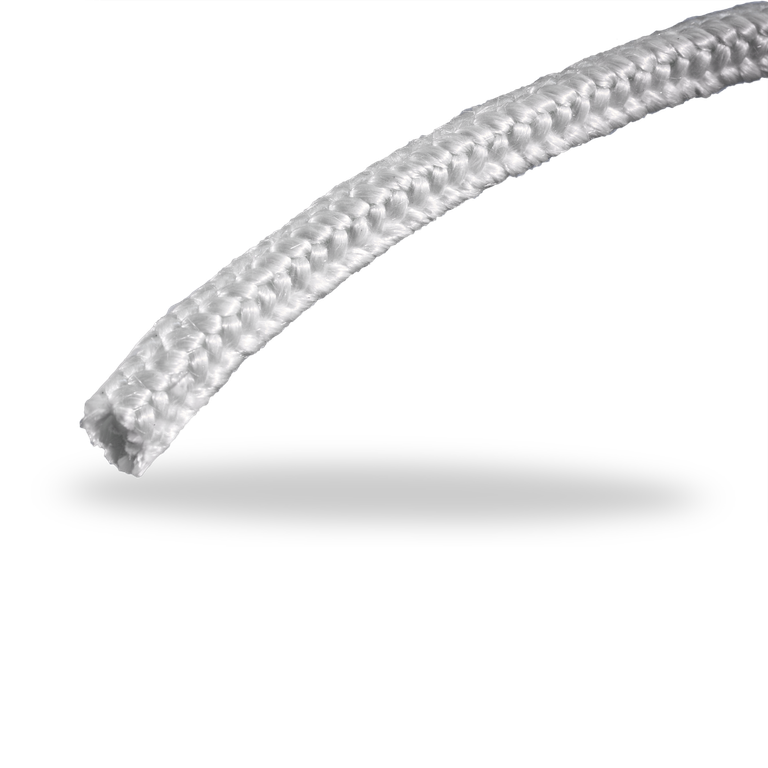

BuraGlas 9480 is a square braided glass fiber packing made from texturized glass yarn. BuraGlas braided materials contain no combustible backings and so are non-flammable.

Advantages

  • High temperature stability
  • Square braiding
  • High flexibility

Operating range

Pressure: p = 10 bar

Temperature
  • Continuous operation:
    t = -100 °C … +550 °C

Chemical resistance:
pH = 5 ... 9
Resistant to water, steam, oil, neutral and dry gases.

Standards and approvals

  • Hydrolytic class 1 to DIN 12 111

Variants

9480/P (graphited)

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg
  • Individual dimensions available upon request

Similar products

BuraGlas GS tape 9495

BuraGlas GS tape 9495 is woven glass fiber sealant tape made of multiple glass layers. The individual layers are stitched and glued together. If needed the sealing tape can be impregnated with a high temperature-resistant graphite compound All products from the BuraGlas range are manufactured from materials and fibers that meet the safety requirements of the World Health Organization (WHO).

BuraGlas INC 7260/INC

BuraGlas INC 7260/INC is a braided glass fiber packing with a core of HT glass fiber yarn with Inconel reinforcement and special impregnation. BuraGlas braided materials contain no combustible backings and so are non-flammable.

BuraGlas R 9472

BuraGlas R 9472 is a round braided glass fiber packing made from texturized glass yarn. BuraGlas braided materials contain no combustible backings and so are non-flammable.
