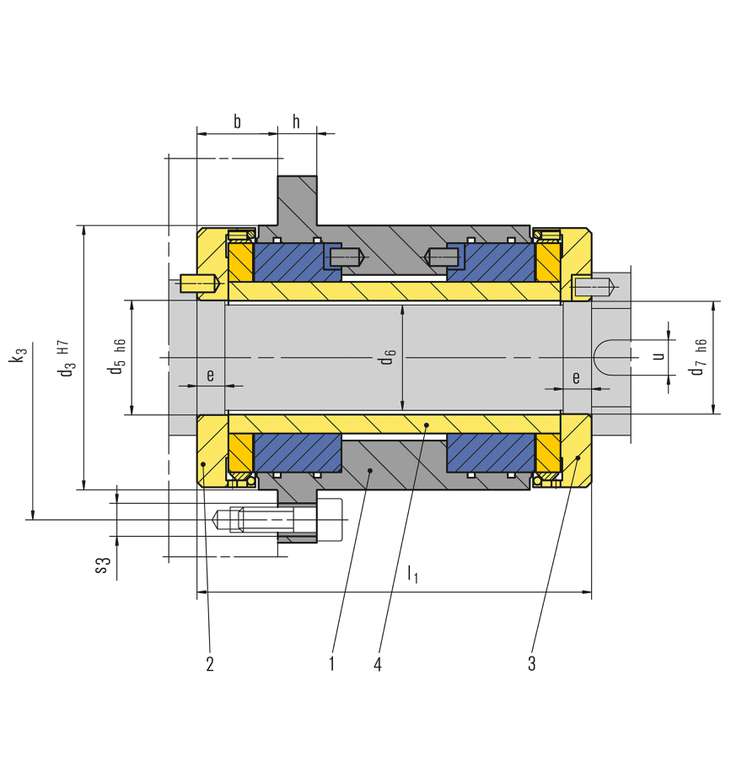

Item Description
1 Radial journal bearing
2, 3 Axial journal bearing
4 Shaft sleeve

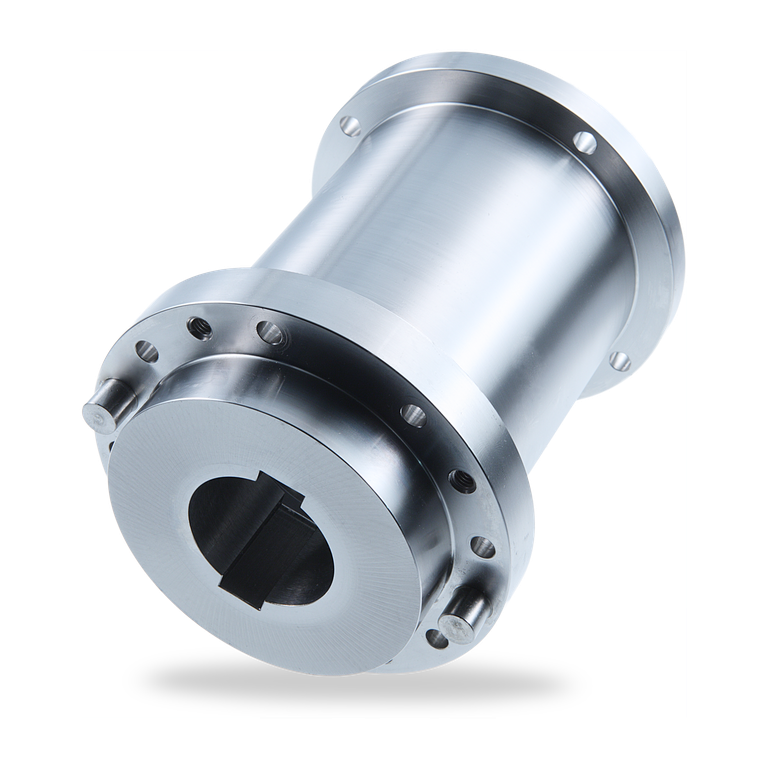

LMF1

Features

Sliding bearings are used for the shaft in magnetic coupled centrifugal or displacement pumps. The sliding parts are made of SiC. The pump liquid is circulating between the rotating and static parts to ensure lubrication and cooling. EagleBurgmann LMF bearings are successfully used for many years in applications worldwide. They are almost wearless and therefore extremely durable.

Advantages

  • Sliding bearing for the shaft of an impeller in a pump
  • Self lubrication through pump liquid
  • Suitable for MAK66, MAK685 and NMB HE magnetic couplings and others

Operating range

Viscosity: 0.3 … 5,000 mPas
Speed: 750 … 3,600 min-1
Solids: max. 0.1 mm; max. 5% by weight; grain hardness max. 700 HV

Materials

Sliding faces: Silicon carbide SiC (Q1),
Carbon silicon impregnated SiC-C-Si (Q3),
Carbon graphite resin impregnated (B)
Metal parts: CrNiMo steel 1.4462 (G1)

Functional description

The shaft end es connected to the shaft sleeve and two bearing rings for the axial bearing forces. It is running against the stationary bearing bushings.

Notes

  • Variants for low (-110 °C (230 °F)) and high temperature (... +400 °C (752 °F)) and variants with heatable or coolable chamber available.



Product variants

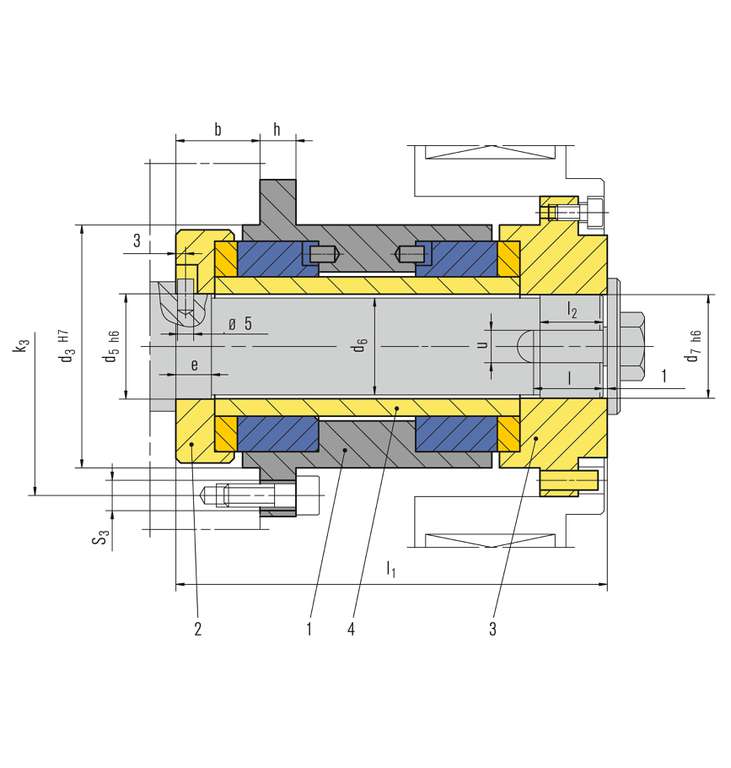

LMF10
Bearing for demanding application conditions. Axial journal bearing not shrunk but inserted. Materials as for LMF1, optionally shaft sleeve made of 1.4462 with chromium dioxide coating. Dimensions see table.
