DFS Type
expansion joints
Installation, details, options
For a larger view, please mouseover the image.

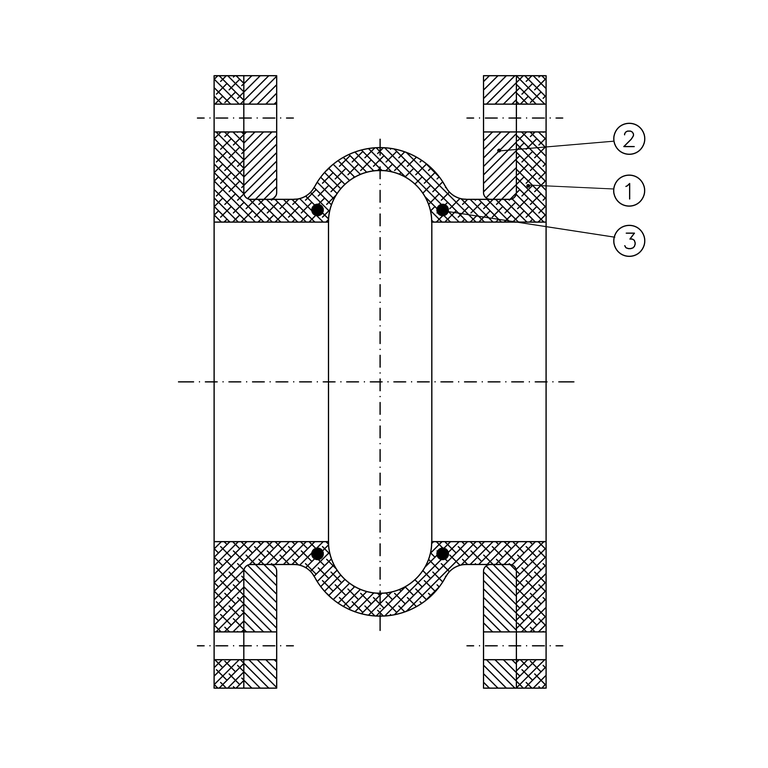

DFS type without tie rods
Item
Designation
1
Rubber bellows
2
Flanges
3
Reinforcement ring
For a larger view, please mouseover the image.

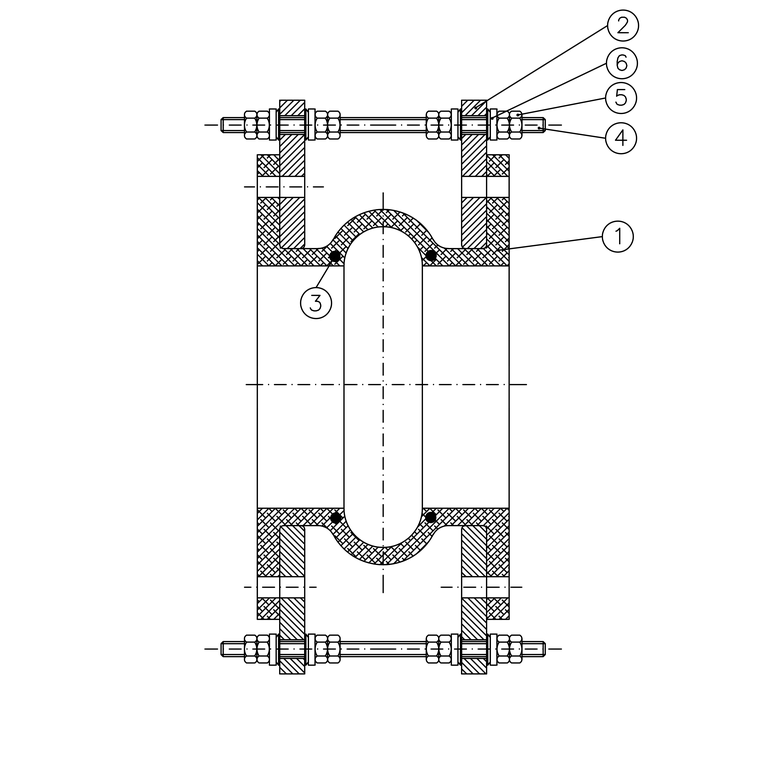

DFS type with tie rods
Item
Designation
1
Rubber bellows
2
Flanges
3
Reinforcement ring
4
Tie rods
5
Nuts
6
Spherical washers
